Date Picker

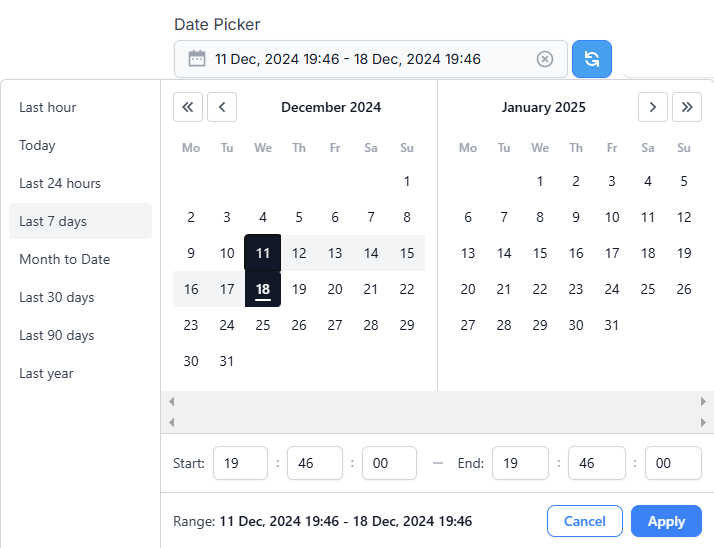

The statistics displayed on the Monitor and Events pages relate to the period that is currently selected. You can select a predefined period by clicking on the Date Picker box.
Votiro On-prem provides the following predefined settings:
Period of Processing Activity |
Meaning |
|---|---|
Last hour |
The information is for the period starting 60 minutes earlier until the current time. |
| Today | The information is for the period starting at 00:00 (midnight) of the current day until the current time. |
Last 24 hours |
The information is for the period starting from the current time, 24 hours earlier, until the current time. |
Last 7 days |
The information is for the period starting from the current time, 7 days earlier, until the current time. This is the default option. |
| Month to Date | The information is for the period starting at 00:00 (midnight) of the first day of the month until the current time. |
Last 30 days |
The information is for the period starting from the current date and time, one month earlier, until the current time. |
Last 90 days |
The information is for the period starting from the current date and time, three months earlier, until the current time. |
| Last year | The information is for the period starting from the current date and time, one year earlier, until the current time. |
| Custom | Allows you to define the period to display information for by selecting from and to dates and times from the calendar selection tool. |
Defining a Custom Period
| 1. | Click on the Date Picker box.. |
| 2. | In the left pane, navigate to the desired start month and year by clicking the left arrow (<) to move to the previous month, or by clicking the left double arrow (<<) to jump to the same month in the previous year. If necessary, use the right arrow (>) or right double arrow (>>) to go forward in time. |
| 3. | After reaching the desired starting month in the left pane, click on the desired starting day of the month. The box containing the selected day of the month is highlighted in black. |

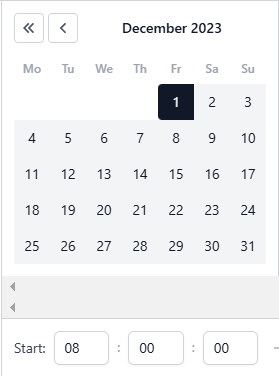

| 4. | In the Start boxes below the month, type the desired starting time. For example: |
| 5. | In the right pane, navigate to the desired end month and year by clicking the right arrow (>) to move to the next month, or by clicking the right double arrow (>>) to jump to the same month in the next year. If necessary, use the left arrow (<) or left double arrow (<<) to go back in time. |
| 6. | After reaching the desired ending month in the right pane, click on the desired ending day of the month. The box containing the selected day of the month is highlighted in black. |

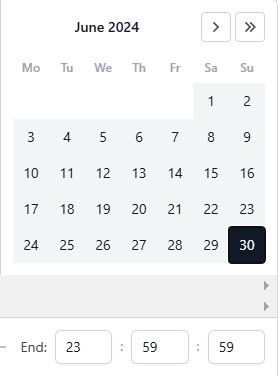

| 7. | In the End boxes below the month, type the desired ending time. For example: |
| 8. | Click Apply. The custom period is displayed in Date Picker box. |
Statistics update to show information for the custom period.
